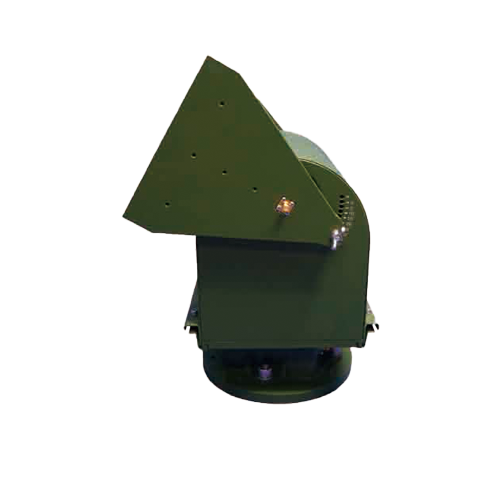

Portable Servo Turntable
Product Overview
The Portable Servo Turntable is mainly used in vehicle-mounted and shore-based radar systems.
Product Features:
1.With positioning, scanning, and tracking capabilities.
2.Adopts a current–speed–position triple closed-loop control system.
3.Supports radar scan path planning.
4.Equipped with one-click stow and return-to-home functions.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Rotation Speed | Azimuth ≥30°/s; Elevation ≥15°/s |
| Positioning Accuracy | 士0.1° |
| Acceleration | Azimuth ≥10°/s²; Elevation ≥5°/s² |
| Rotation Angle | Azimuth 0–360° continuous; Elevation -3°~+85° |
| Communication Interface | RS-422 serial port, baud rate 38400 bps |
| Communication Protocol | Dedicated communication protocol |
| Input Power | DC 28V ±10% |
| Total Power Consumption | ≤100 W |
| Operating Temperature | -25°C~+55°C, 90% ±3%, non-condensing |
| Storage Temperature | -40°C~+65°C |
| Payload | ≥6 kg |
| Total Weight | 12 kg |
| Mounting Type | Top-mounted |
| Drive Type | Worm Gear |
| Protection Level | IP66 |
| Dimensions | 284 mm × 154 mm × 270 mm (L×W×H) |
